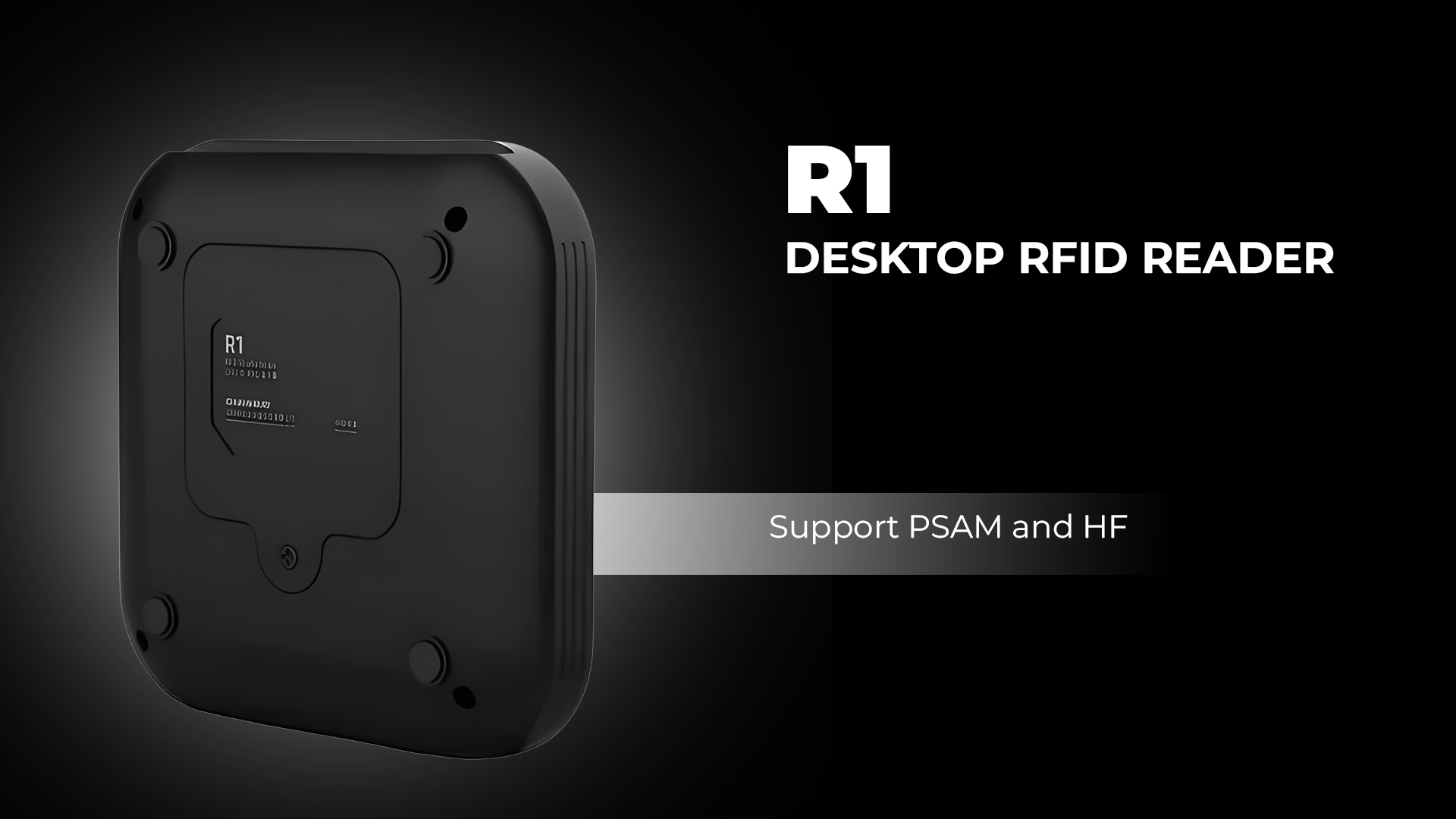

Chainway R1 Desktop RFID Reader
Key Features
- OS: Windows, Android
- Processor: Not specified
- Memory: Not specified
- Scan: UHF (15 cm), HF (5 cm), multi-tag standards
- Connectivity: USB Type-C
- Display: None (LED & buzzer only)
We've streamlined our ordering process to ensure you get your RFID solution quickly and efficiently.
What You'll Need to Provide
- Current inventory management processes
- Expected read volume and tag density
- Environmental conditions and physical space
- Integration requirements with existing systems
আপনার RFID সমাধান দ্রুত এবং দক্ষতার সাথে পেতে আমরা আমাদের অর্ডার প্রক্রিয়াটি সহজ করেছি।
আপনার যা প্রদান করতে হবে
- বর্তমান ইনভেন্টরি ব্যবস্থাপনা প্রক্রিয়া
- প্রত্যাশিত পঠন ভলিউম এবং ট্যাগ ঘনত্ব
- পরিবেশগত অবস্থা এবং ভৌত স্থান
- বিদ্যমান সিস্টেমের সাথে একীকরণের প্রয়োজনীয়তা
Key specification
Detailed technical specifications that make this product reliable, high-performing, and widely trusted
| Connection |
USB Type-C, 1.2 m cable |
|---|---|
| Indicators |
LED light, buzzer |
| Power Input |
DC 3.5 – 5.25 V |

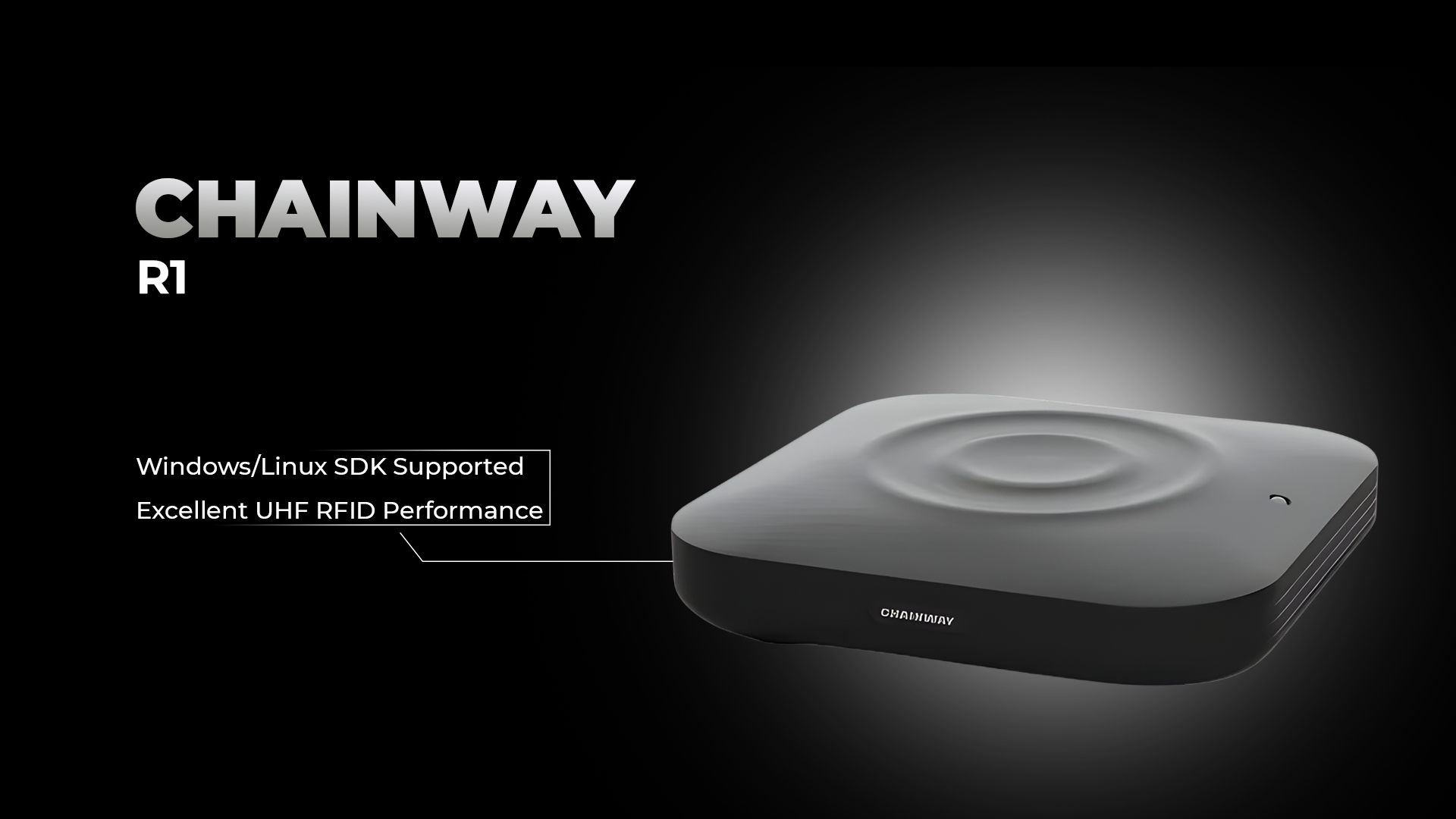

Chainway R1: Plug-and-Play USB-C Desktop RFID Reader/Writer for Secure Business Workstations
Transitioning from paper-based or manual barcode scanning to automated RFID systems starts at the operator’s desk. The Chainway R1 Desktop RFID Reader/Writer is a compact USB-C device designed for fast tag encoding, document tracking, and membership validation at corporate workstations and counters in Bangladesh. It simplifies the registration and processing of RFID cards and labels, making it the perfect gateway for office, bank, and retail automation.
Dual-Frequency Versatility (UHF and HF) with Multi-System Support
The Chainway R1 provides dual-frequency capability, reading UHF tags at close range (up to 15 cm) and HF tags (up to 5 cm). Operating on Windows and Android platforms, it links directly to your inventory or asset tracking database via a simple USB Type-C connection. It has built-in LED indicators and a buzzer, giving operators immediate success feedback without requiring a separate monitor.
Seamless B2B Workstation Integration
With its small footprint and plug-and-play interface, the R1 can be placed at service desks, quality control benches, and sales counters. It is widely used in garments factories for tagging individual samples, in banks for secure file tracking, and in libraries for automated book returns, allowing staff to handle tagging and verification tasks quickly and securely.
Contact RFID Solution today for pricing, deployment support, and system integration.
| Category | Details |
| Size | 117 × 117 × 25 mm (4.6 × 4.6 × 0.98 in) |
| Weight | 170 g (6 oz) |
| Connection | USB Type-C, 1.2 m cable |
| Indicators | LED light, buzzer |
| Power Input | DC 3.5 – 5.25 V |
| Power Use | UHF: 5W (25 dBm)
HF: 2W Standby: 0.4W |
| Working Temp. | -25°C to 65°C (-13°F to 149°F) |
| Storage Temp. | -40°C to 85°C (-40°F to 185°F) |
| Humidity | 10% – 95% |
| UHF RFID | Engine: CM-3N (Impinj E310)
Protocol: ISO18000-6C / EPC C1G2 Frequency: 865–868 / 920–925 / 902–928 MHz Output: +1 dBm to +25 dBm (±1 dB) Antenna: Circular Polarized Range: 15 cm |
| HF RFID | Protocols: ISO14443A, ISO14443B, ISO15693, ISO18000-3 mode 3 / EPC Class-1 HF, JIS X 6319-4
Frequency: 13.56 MHz Range: 5 cm |
| PSAM Slots | 2 slots (ISO7816 T=0, T=1) |
| Warranty | 12 months |
No Installation charge
Installed by professional expert
Reliable Performance
Proven in demanding environments
professional support
Expert technical assistance
lifetime service warranty
We provide lifetime service
Need Help Choosing the Right RFID Product?
Our technical experts are ready to assist you in selecting the perfect solution for your specific requirements
