Chainway URA4 Fixed RFID Reader
URA4 Fixed Series
Key Features
- OS: Android 13
- Processor: Octa-core 2.0 GHz
- Memory: 3GB RAM + 32GB ROM
- Scan: UHF (Impinj E710), 30m+ range, 900+ tags/sec, NFC, multiple scan engines
- Connectivity: 5G/4G/3G/2G, Wi-Fi 6 (2.4G/5G dual-band), Bluetooth 5.0, Ethernet (RJ45)
- Display: HDMI output, supports 720P
We've streamlined our ordering process to ensure you get your RFID solution quickly and efficiently.
What You'll Need to Provide
- Current inventory management processes
- Expected read volume and tag density
- Environmental conditions and physical space
- Integration requirements with existing systems
আপনার RFID সমাধান দ্রুত এবং দক্ষতার সাথে পেতে আমরা আমাদের অর্ডার প্রক্রিয়াটি সহজ করেছি।
আপনার যা প্রদান করতে হবে
- বর্তমান ইনভেন্টরি ব্যবস্থাপনা প্রক্রিয়া
- প্রত্যাশিত পঠন ভলিউম এবং ট্যাগ ঘনত্ব
- পরিবেশগত অবস্থা এবং ভৌত স্থান
- বিদ্যমান সিস্টেমের সাথে একীকরণের প্রয়োজনীয়তা
Key specification
Detailed technical specifications that make this product reliable, high-performing, and widely trusted
Central Processing Unit (CPU)
|
Qualcomm 1.8 GHz Octa-core |
|---|---|
Reading Speed
|
1300+ tags/sec Read Rate |
Communication
|
Network : 2G, 3G, 4G |
Durability
|
Durable Aluminum Alloy Body |
Engine
|
Impinj Gen2X |
Flexibility
|
Flexible Deployment |
RAM & ROM
|
3 GB + 32 GB, 2 GB + 16 GB (optional) |
Antenna
|
4 channel 50Ω TNC port |
Dimensions
|
214 (L) x 148 (W) x 30 (H) mm |

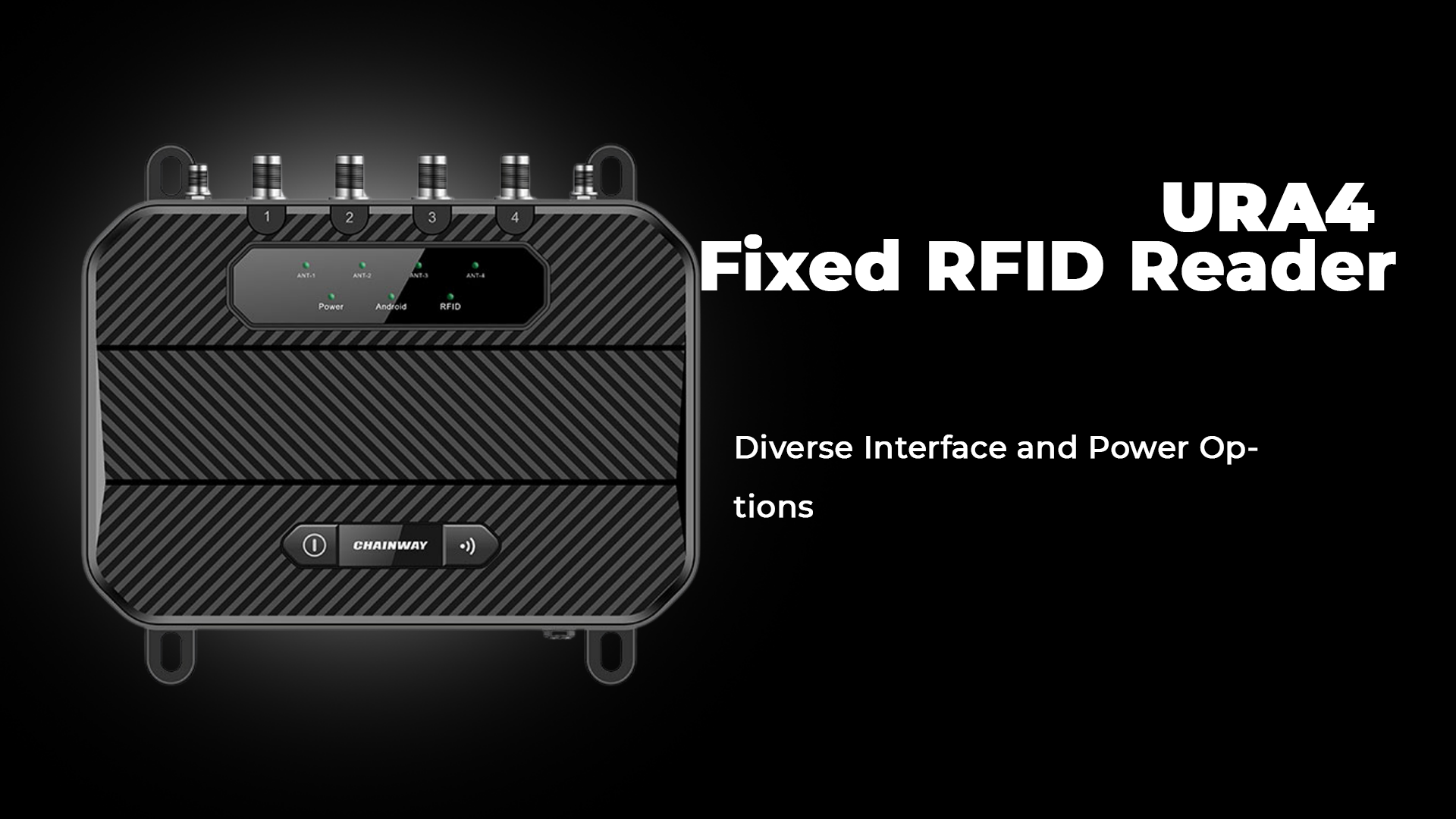

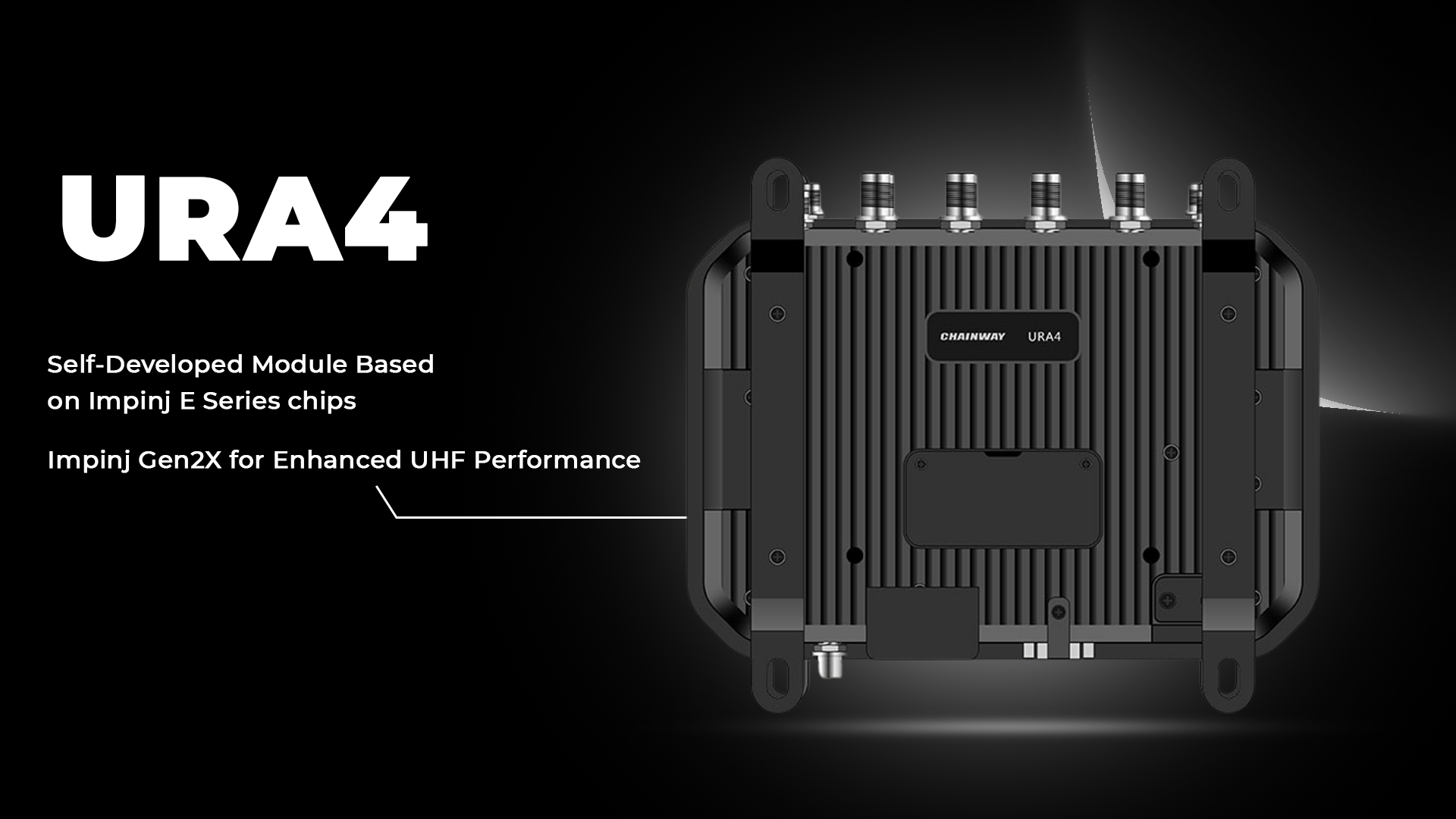

Chainway URA4: 4-Port Industrial Fixed RFID Reader for Enterprise Warehouse Gateways
To establish a fully automated tracking system at warehouse dock doors, toll plazas, and high-volume distribution bays in Bangladesh, multi-port fixed readers are required. The Chainway URA4 Fixed RFID Reader is a high-performance 4-port reader built on Android 13. Equipped with a powerful octa-core 2.0GHz processor and an Impinj E710 module, the URA4 handles massive data traffic, reading 900+ tags per second with a scan range extending beyond 30 meters.
Flexible Multi-Antenna Configuration and Rich Interface Ports

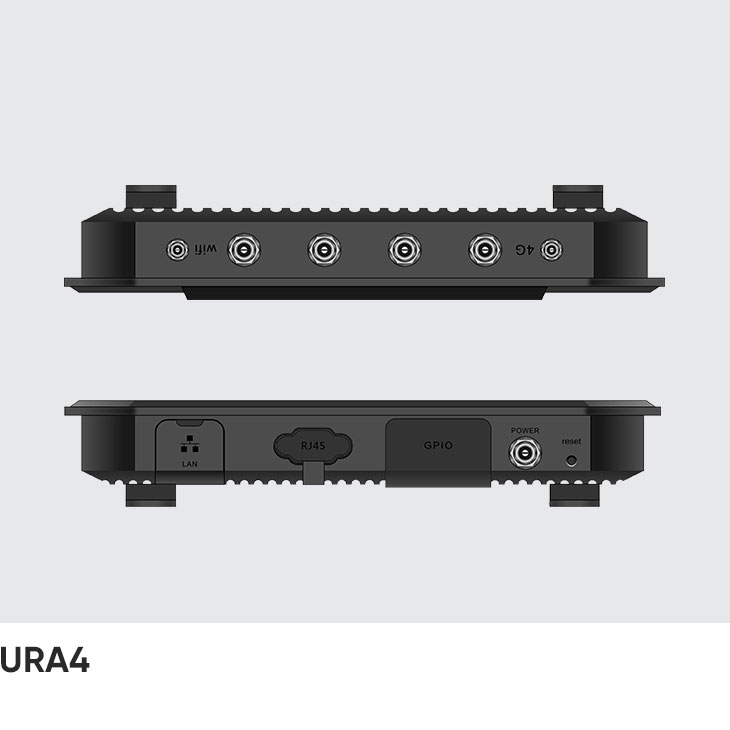

Featuring 4 coaxial antenna ports, the URA4 allows businesses to construct wide, multi-directional read zones around loading docks, preventing missed scans during bulk shipments. It provides a comprehensive suite of interface ports, including RJ45 Ethernet, RS-232, HDMI output (720P), and GPIO pins, enabling direct integration with electric warehouse gates, alarm buzzers, warning lights, and central database networks.
Enterprise-Grade Connectivity and Security
The URA4 ensures constant uptime with 5G cellular connectivity, Wi-Fi 6 (dual-band), and Bluetooth 5.0. Supported by 3GB RAM and 32GB ROM, it processes scan data locally at the edge before syncing with your enterprise resource planning (ERP) systems, reducing network load and providing reliable, secure logistics tracking under demanding industrial conditions.
Contact RFID Solution today for pricing, deployment support, and system integration.
