Chainway CP-20 RFID Barcode Printer
Chainway CP-20 Desktop RFID & Barcode Printer (Thermal Transfer / Direct Thermal)
Key Features:
- Model: CP-20
- Printing Method: Direct Thermal/Thermal Transfer
- Printing Speed: Up to 152mm/s(6ips)
- Interface:
Standard version: USB
Optional: Serial / LAN / Wi-Fi / Bluetooth
We've streamlined our ordering process to ensure you get your RFID solution quickly and efficiently.
What You'll Need to Provide
- Current inventory management processes
- Expected read volume and tag density
- Environmental conditions and physical space
- Integration requirements with existing systems
আপনার RFID সমাধান দ্রুত এবং দক্ষতার সাথে পেতে আমরা আমাদের অর্ডার প্রক্রিয়াটি সহজ করেছি।
আপনার যা প্রদান করতে হবে
- বর্তমান ইনভেন্টরি ব্যবস্থাপনা প্রক্রিয়া
- প্রত্যাশিত পঠন ভলিউম এবং ট্যাগ ঘনত্ব
- পরিবেশগত অবস্থা এবং ভৌত স্থান
- বিদ্যমান সিস্টেমের সাথে একীকরণের প্রয়োজনীয়তা
Key specification
Detailed technical specifications that make this product reliable, high-performing, and widely trusted
| Printing Method |
Thermal Transfer / Direct Thermal |
|---|---|
| Resolution |
203dpi / 300dpi |
| Ribbon Capacity |
Max. 300m |
| Interface |
USB/ Serial / LAN / Wi-Fi / Bluetooth |
Chainway CP-20: Industrial Desktop RFID and Barcode Label Printer for High-Speed Tagging
Modern supply chains, garments manufacturing plants, and retail inventory networks in Bangladesh require instant and accurate RFID tag writing. The Chainway CP-20 RFID Barcode Printer is a compact desktop terminal designed to handle both barcode and RFID encoding tasks. Supporting Direct Thermal and Thermal Transfer printing methods, it enables organizations to produce high-durability tracking labels for logistics cartons, shipping pallets, and retail inventory.
Fast Printing Speeds and Flexible Port Configuration

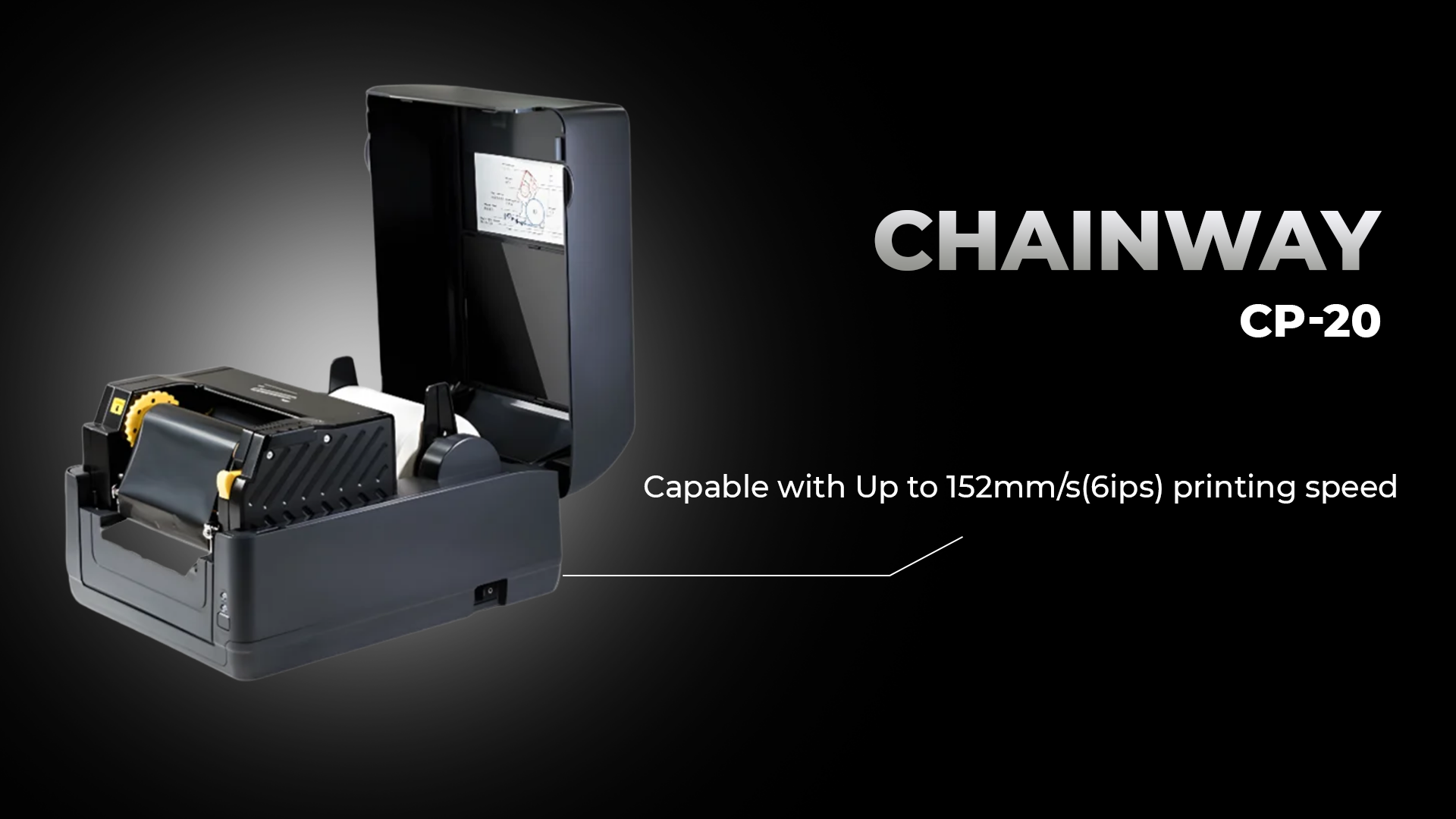

The CP-20 offers printing speeds up to 152mm/s (6 inches per second), ensuring fast batch-label generation. It is equipped with a standard USB interface, with optional Serial, LAN, Wi-Fi, and Bluetooth modules available for network integration. This versatility allows IT teams to connect the printer directly to corporate ERP systems or deploy it wirelessly on factory floors and warehouse desks throughout Bangladesh.
Durable Construction for Demanding Workstations
Housed in a rugged casing, the CP-20 is built to withstand continuous daily operations in banks, offices, supermarkets, and warehouses. It provides automatic RFID calibration and precise print alignment, minimizing tag waste. By combining thermal barcode printing and RFID chip encoding in a single desktop footprint, it serves as an efficient solution to upgrade tracking systems.
Contact RFID Solution today for pricing, deployment support, and system integration.
| Printing | |
| Printing Method | Thermal Transfer / Direct Thermal |
| Resolution | 203dpi / 300dpi |
| Max. Printing Speed | 152mm (6″)/s (203dpi), 127mm (5″)/s (300dpi) |
| Max. Printing Width | 104mm (4.09″) |
| Max. Printing Length | 1778mm (70″) (203dpi), 889mm (35″) (300dpi) |
| Media | |
| Media Types | Continuous, Gap, Black Mark, Fan-Fold, Punched Hole |
| Media Width | 25.4 ~ 118mm (1.0″ ~ 4.6″) |
| Media Thickness | 0.06 ~ 0.254mm (2.36 ~ 10mil) |
| Label Length | 10 ~ 1778mm (0.39″ ~ 70″) |
| Label Core Diameter | 25.4 ~ 76.2mm (1″ ~ 3″) |
| Label Roll Capacity | 127mm (5″) OD (Outer Diameter) |
| Ribbon | |
| Ribbon Width | 110mm |
| Ribbon Capacity | Max. 300m |
| Physical Characteristics | |
| Dimensions | 282mm × 232mm × 171mm |
| Weight | 2.56kg / 90.30oz. |
| Interfaces & Sensors | |
| Standard Interface | USB |
| Optional Interfaces | Serial / LAN / Wi-Fi / Bluetooth |
| Sensors | Gap Sensor, Cover Opening Sensor, Black Mark Sensor, Ribbon Sensor |
| Power Supply | |
| Input Voltage | AC100-240V, 2A, 50-60Hz |
| Output Voltage | DC 24V / 2.5A / 60W |
| Performance & Storage | |
| Processor | 32-bit CPU |
| RAM | 8MB SDRAM |
| Flash Memory | 8MB Flash Memory (Expandable up to 4GB) |
| User Environment | |
| Operating Temperature | 5°C ~ 40°C (41°F ~ 104°F), Humidity 25% to 85% Non-Condensing |
| Storage Temperature | -40°C to 60°C (-40°F to 140°F), Humidity 25% to 85% Non-Condensing |
| Software & Development | |
| SDK | Windows / iOS / Android / Linux / Mac |
| Driver | Windows |
| Print Head Life | 30km or 3 months |
| Fonts & Barcode Support | |
| Internal Fonts | 8 Alphanumeric Bitmap Fonts, Windows Fonts Downloadable |
| 1D Barcodes | Code 39, Code 93, Code 128UCC, Code 128 (A, B, C), Codabar, Interleaved 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, MSI, PLESSEY, POSTNET, China POST, GS1DataBar, Code 11 |
| 2D Barcodes | PDF-417, Maxicode, DataMatrix, QR Code, Aztec |
| Rotation | 0°, 90°, 180°, 270° |
| Emulation & Options | |
| Supported Emulation | TSPL, EPL, ZPL, DPL |
| Factory Options | Serial / LAN / Wi-Fi / Bluetooth |
| Dealer Options | External Label Roll Holder, Peeler Module, Cutter Module |
| Certification & Compliance | |
| Certifications | FCC, CE, CCC, RoHS |
| Warranty | 12 months |
